Description

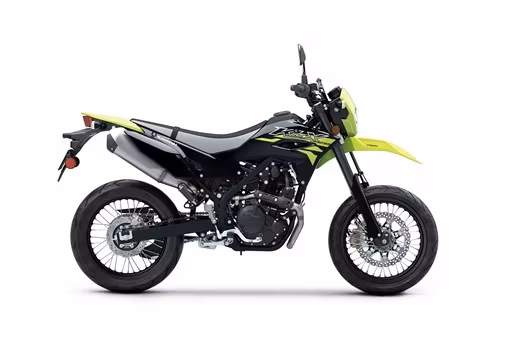

Kawasaki KLX®230SM ABS
Specifications
Manufacturer
Kawasaki
Model
KLX®230SM ABS
Year
2026
Category
Motorcycles
Subcategory
Supermoto
Engine
4-stroke single, SOHC, air-cooled
Displacement
233cc
Maximum Horsepower
17 hp¹ @ 8,000 rpm
Maximum Torque
13.0 lb-ft @ 6,400 rpm
Compression Ratio
9.4:1
Ignition
TCBI with Electronic Advance
Transmission
6-speed
Final Drive
Sealed chain
Electronic Rider Aids
Anti-lock Brake System (ABS)
Front Tire
110/70-17
Rear Tire
120/70-17
Frame Type
Perimeter, high-tensile steel
Estimated Dry Weight
286.5 lb** 50-State Model; 284.4 lb** 49-State Model
Curb Weight
302.1 lb* 50-State Model; 299.9 lb* 49-State Model
Fuel Capacity
2.0 gal
Fuel System
DFI® with 32mm throttle body
Front Suspension / Wheel Travel
37mm telescopic fork/7.4 in
Rear Suspension / Wheel Travel
Uni-Trak® linkage system and single shock with adjustable spring preload/8.8 in
Front Brakes
Single 300mm petal disc with a dual-piston caliper and ABS
Rear Brakes
Single 220mm petal disc with single-piston caliper and ABS
Bore x Stroke
67.0 x 66.0mm
Rake/Trail
24.9°/3.0 in
Overall Length
80.1 in
Overall Width
33.3 in
Overall Height
44.3 in
Ground Clearance
8.7 in
Seat Height
33.1 in
Wheelbase
53.7 in
